Safety for Humans
Safety for Humans
  • Thermal Cameras

    Case Thermal Solutions are designed to assist you in maximizing the safety and security of your premises under any circumstances. Our  advanced dual sensor thermal and IP camera comes in both a stand-alone version as well as a kit with laptop and tripod for quick deployment.





Case Thermal

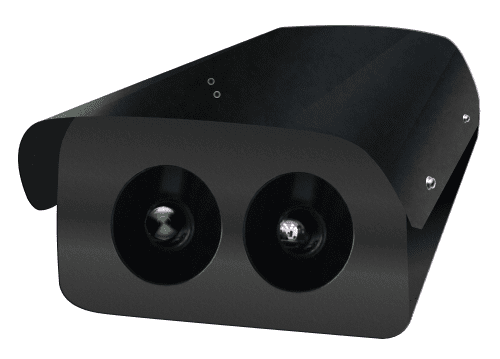

    Case Model EXC1200-v3 Dual Thermal and IP Sensors with High Sensitivity Thermal Module and High Resolution IP Camera (1920 x 1080 resolution).

Reliable temperature-anomaly alarm, Temperature Range from -15°C to +150°C, High quality optical module with 2 MP resolution, Bi-spectrum image fusion, Picture-in-picture preview. IP Processing:

Hi3516E HD IP Camera SoC, Video and Graphics Processing, 3DNR, image enhancement, and DCI, Anti-flicker for output videos and graphics, 1/15x to 16x video and graphics scaling, Image mirror and flip, OSD overlaying of eight regions before encoding.

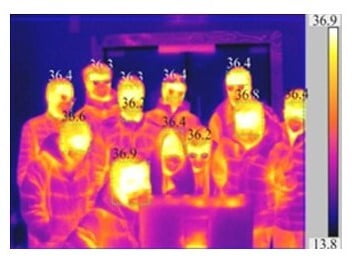

When properly installed the EXC1200 is accurate within -.3°C and makes a perfect fever detection solution with a full suite of security analytics. Specification available here.


               ​ Software Features



Features include fever detection, missing mask alarms, facial recognition, object detection and identification, object tracking, alarms and alerts, zone tracking, auto recording with snapshots, time and date stamps, and easy to deploy instructions.


New Features:

Case Object Frame Displacement allows users to describe how much leeway objects have to move between frames before they are considered a new object.


Case FPF (Frame Processing Frequency) allows users to manage overhead by limiting the individual frames being processed.


Object Detection GPU allows users to move processing overhead to the GPU.














​Hardware Technology



























































Series Switching Capability:

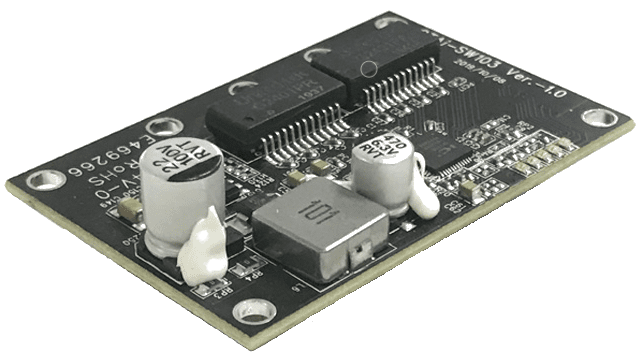

Mini 24v PoE switch board allows power out from DC 5-30V with auto-sensing network RJ45 port. Complies to IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Stackable power out can power additional PoE cameras minimizing cable runs and saving costs.

Features Include:Interface 100M network port: 10/100/1000 self-adaptation, Transmission Distance Twisted Pair: 100M, Interface indicator: 1-4(LINK/ACT), Power Indicator. Forwarding Speed: 148810 pps, Transmission Method: Store and Forward, System Switching Broadband: 1.0G, Cache: 1.0G.

Working temperature: -5~+55°C, Storage temperature: -40~+85°C, Humidity: 10%~95% (no condensation).
