Safety for Humans
Safety for Humans
  • Turnstiles and Gateways

    Case Turnstiles and Gateways offer fever detection, metal detection, people counting, object ID, facial recognition and access control. Turnstiles and Gateways can work together or as stand-alone systems.


    Case's Turnstiles and Gateways are perfect for Schools, Airports, Offshore, Sporting Arenas, Movie Theaters, Theme Parks, Office Buildings, and other critical areas.

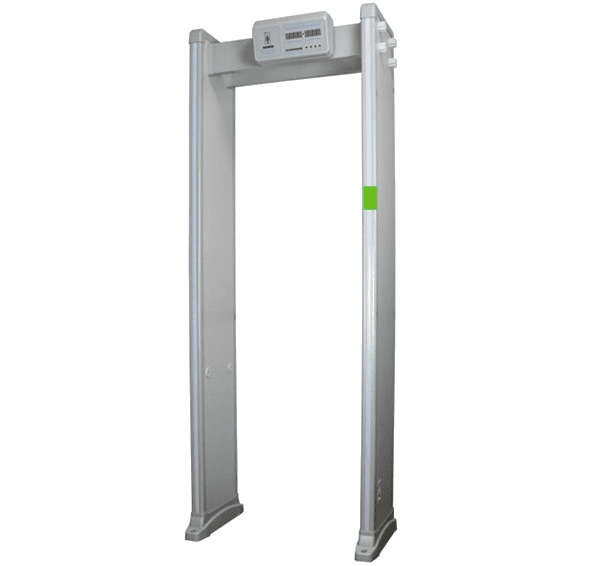

Case Thermal Gateway

 Case Model CRP-200S Fever/Metal Detector  is a simple and accurate method of protecting people and property from potential threats.

Specification sheet available here.


 The CRP-200S is a walk-through security gate that combines multi-zone metal detection with highly accurate thermal scanning for human body temperature. Thermal and metal sensors have both audible alarms and digital displays to notify users when an alarm is triggered. Ideal for safety inspections at airports, bus and train stations, court buildings, hospitals,  public buildings, schools, stadiums, exhibition halls, office buildings, theaters and more.

Embedded sensors added to cover a wide range of different heights and sizes of people.  Camera sensors can also be added to include Case Analytics.

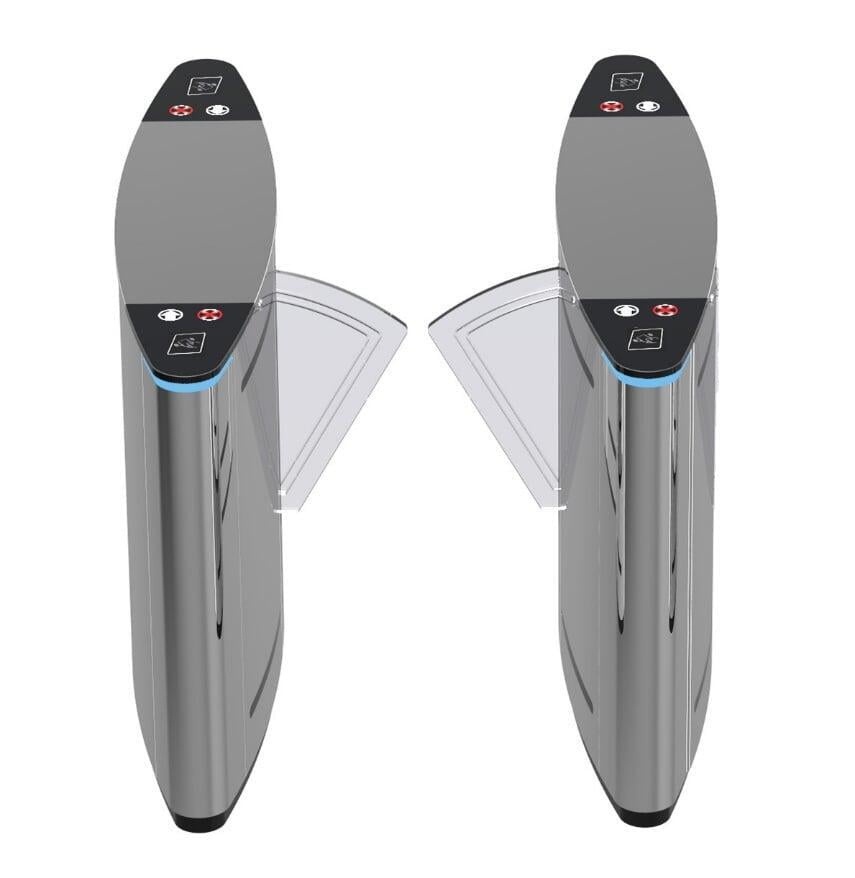

                  Case Turnstiles

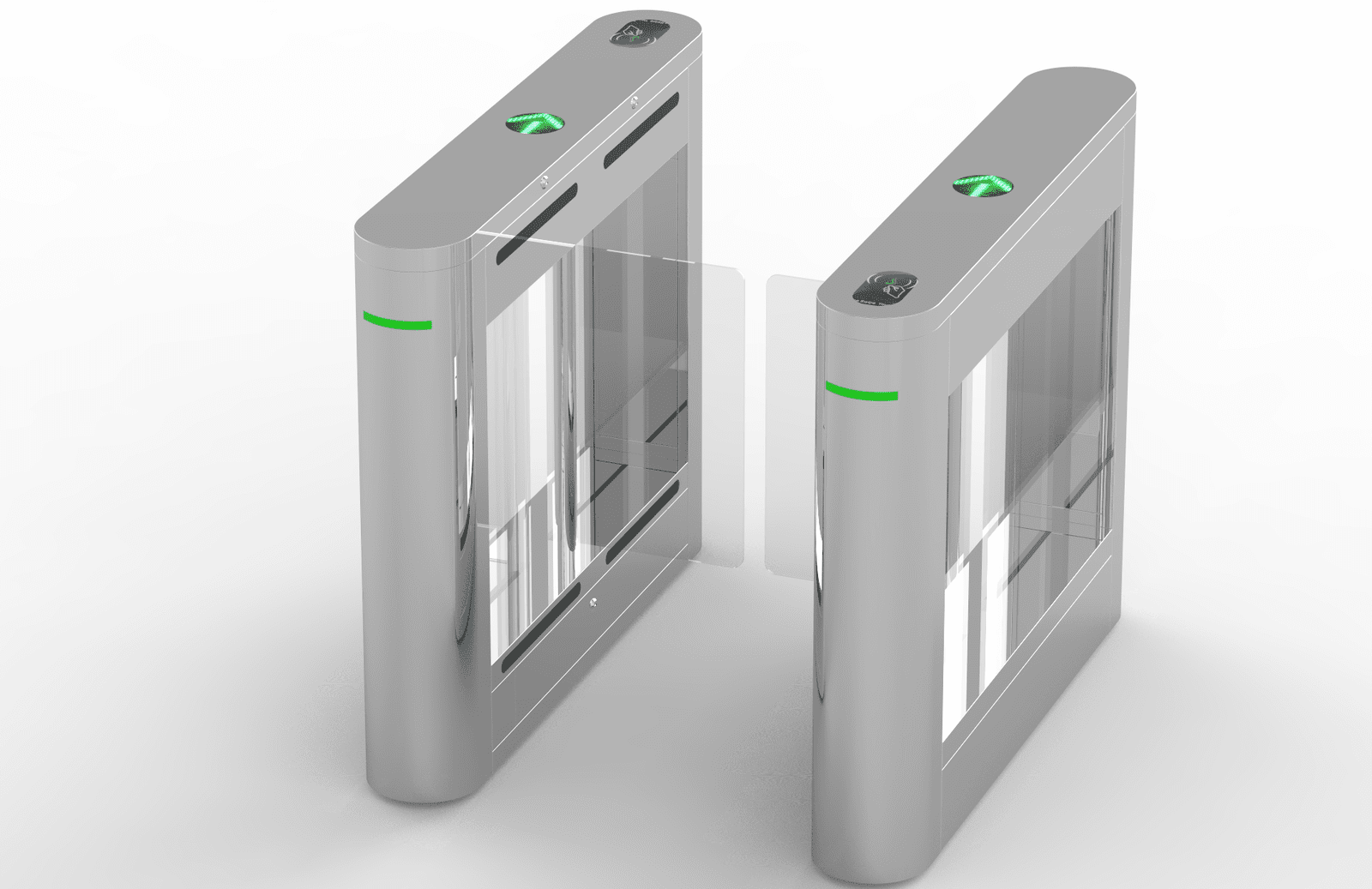

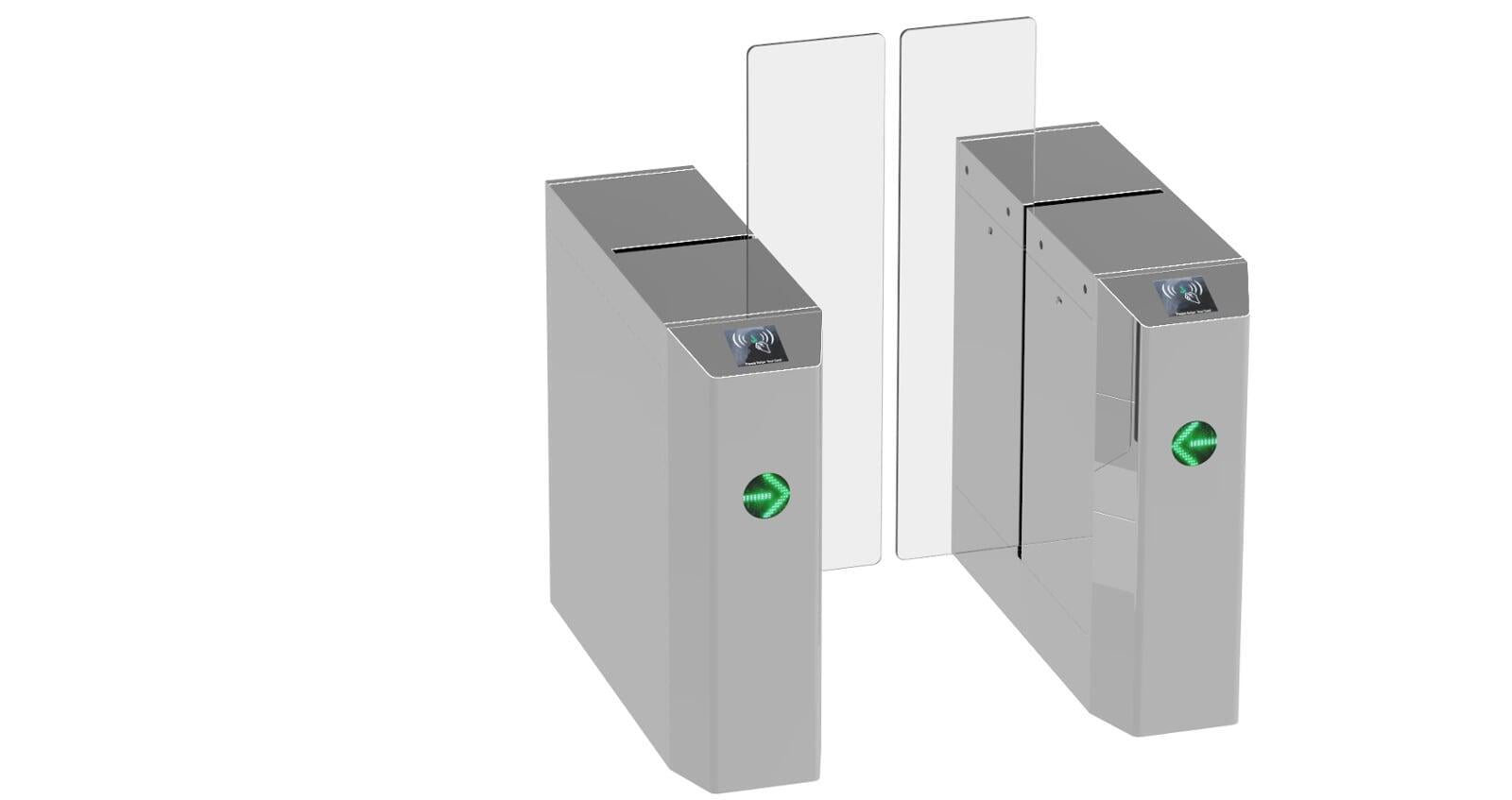

Case Model CRP-G10 Access Control Turnstile  is a build-as-needed Access Control card reader and fever detection solution. The CRP-G10 is our latest Turnstile Solution and is the most cost effective system to ship and deploy. Case also has the CRP-G12 square door solution,  the CRP-G14 full size door solution,

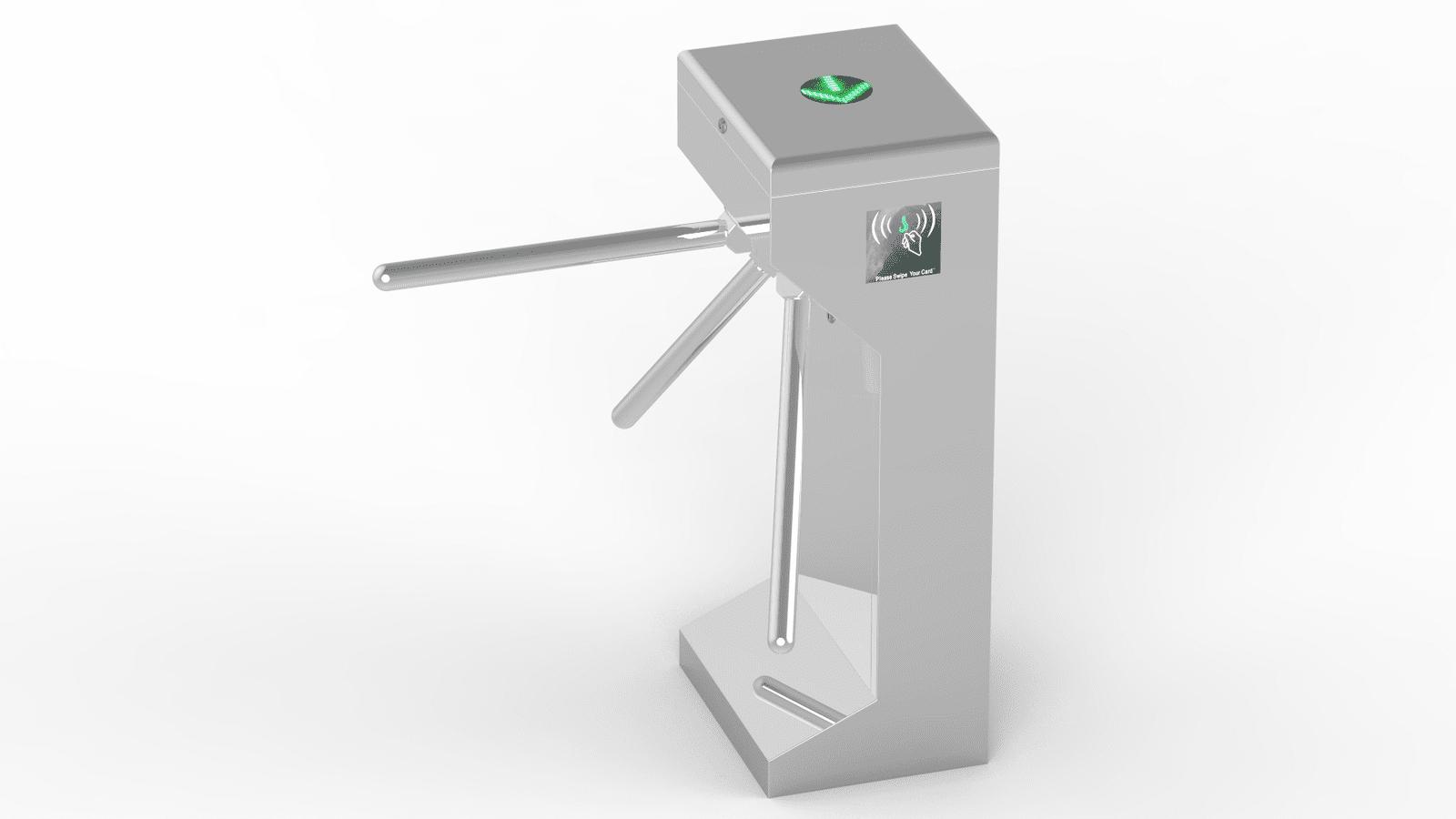

and the CRP-G16 traditional stile solution.


Turnstiles ship programmed and ready to deploy with easy to follow instructions.

Power Supply 110/AC -220/AC, Material 304 Stainless Steel (1.5mm), Dimension (ea.) 1400mm x 300mm x 980mm

Passage Width 550mm, Access Control Card Reader, made for indoor use. Certifications CE, ROHS, UL. Suggested add-ons CTS-S20 Fever Detection system, and Case Analytics.

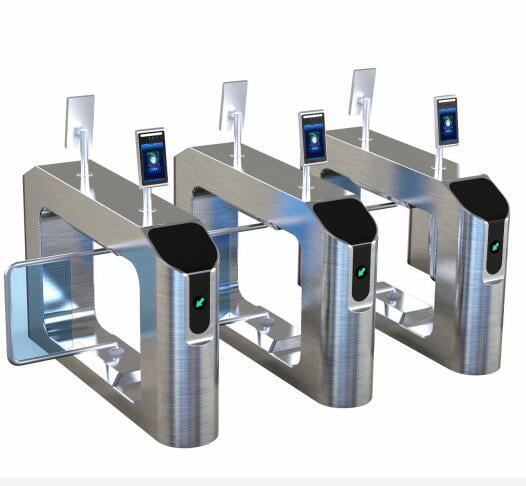

​Case Turnstile Fever Detection

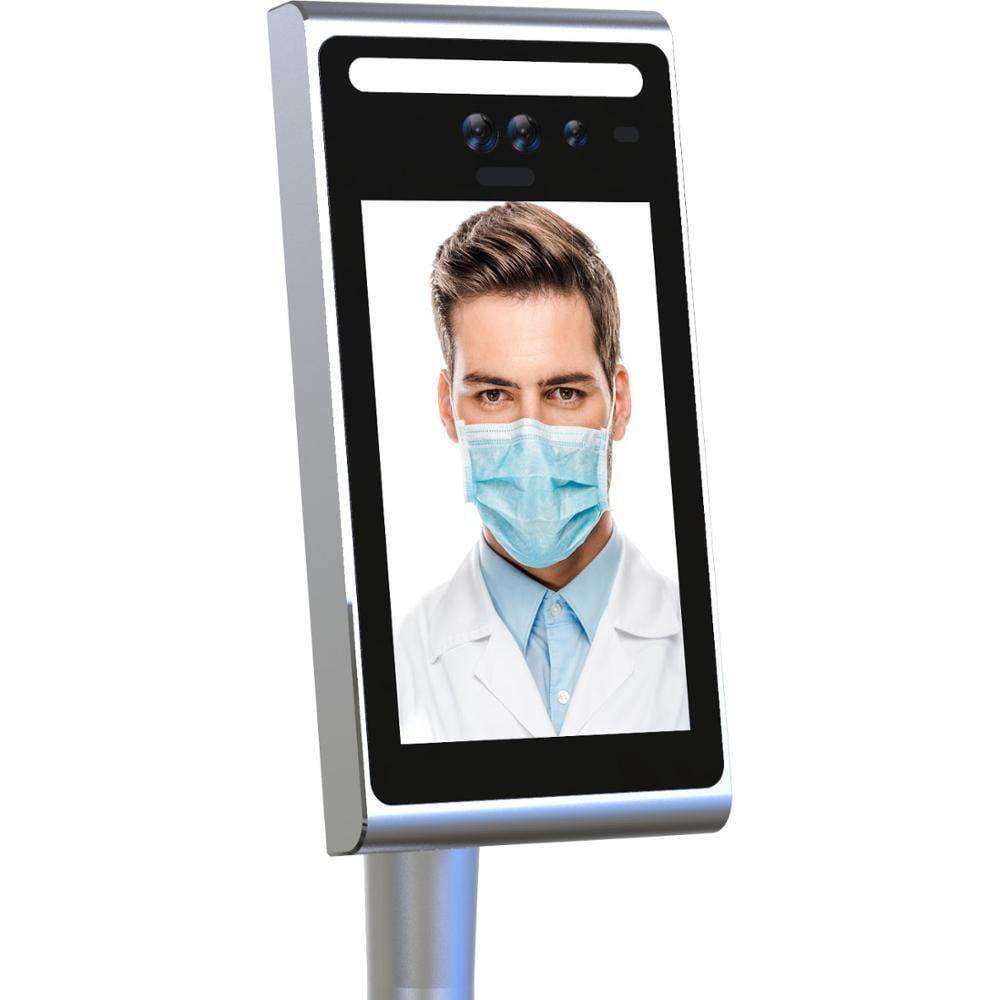

The Case CTS-S20 Thermal Tablet Scanner is an add-on kiosk scanner that detects fever in
humans (.3 degrees accuracy), facial
    recognition (up to 100,000 person data base), has an audible alarm and light indicator when humans pass fever scans, and can open turnstiles.

  Face Recognition
2 MP, max resolution:1616*1232,  fixed focus, Shooting angle 90 °, the spherical distortion:<1%, Keystone distortion:<1%,
Output response time: 1s, frame rate: 30 FPS,  Color Depth: 24 bits, dynamic range: automatic, backlight control: automatic,
fill light: 3× 0.5W LED 850 infrared lights.
Body Temperature Detection Module temperature range -30~45°C / -22~113°F,
temperature distance 0.5~1m, temperature accuracy 0.3°,  and mask recognition.
